3D Design & Fabrication Projects
Explore a collection of CAD-driven designs brought to life through 3D printing, machining, and prototyping. From concept to fabrication, see how digital models become functional, physical parts.
Robotic Flower Petals
Designed and printed multiple petal iterations for the Interactive Robotic Art Display, refining geometry for smooth motion and visual impact before final campus installation.
Design
Loading 3D model...
SolidWorks
Final Product
Print Details
Resin, PLA
4/24/2025

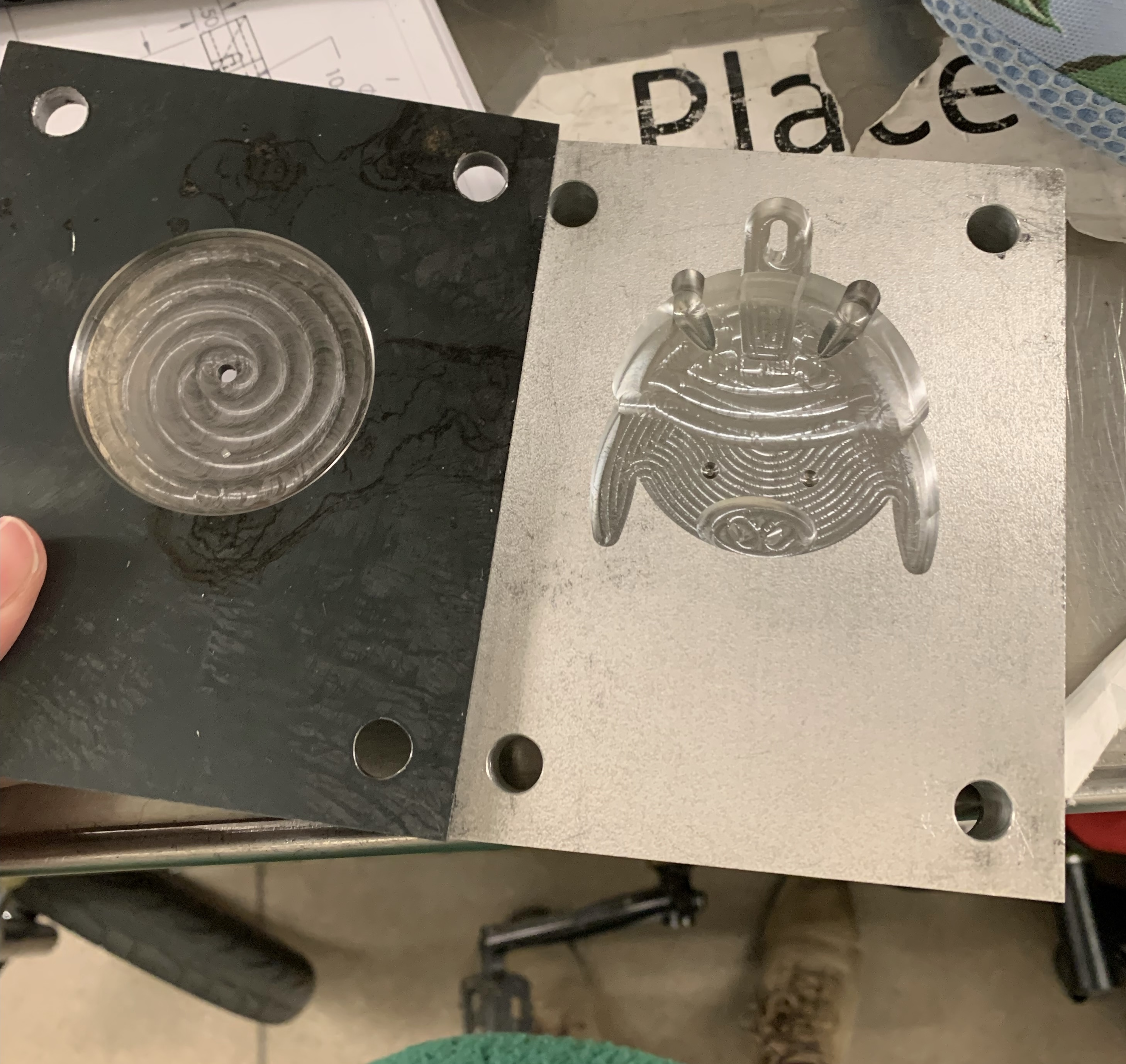

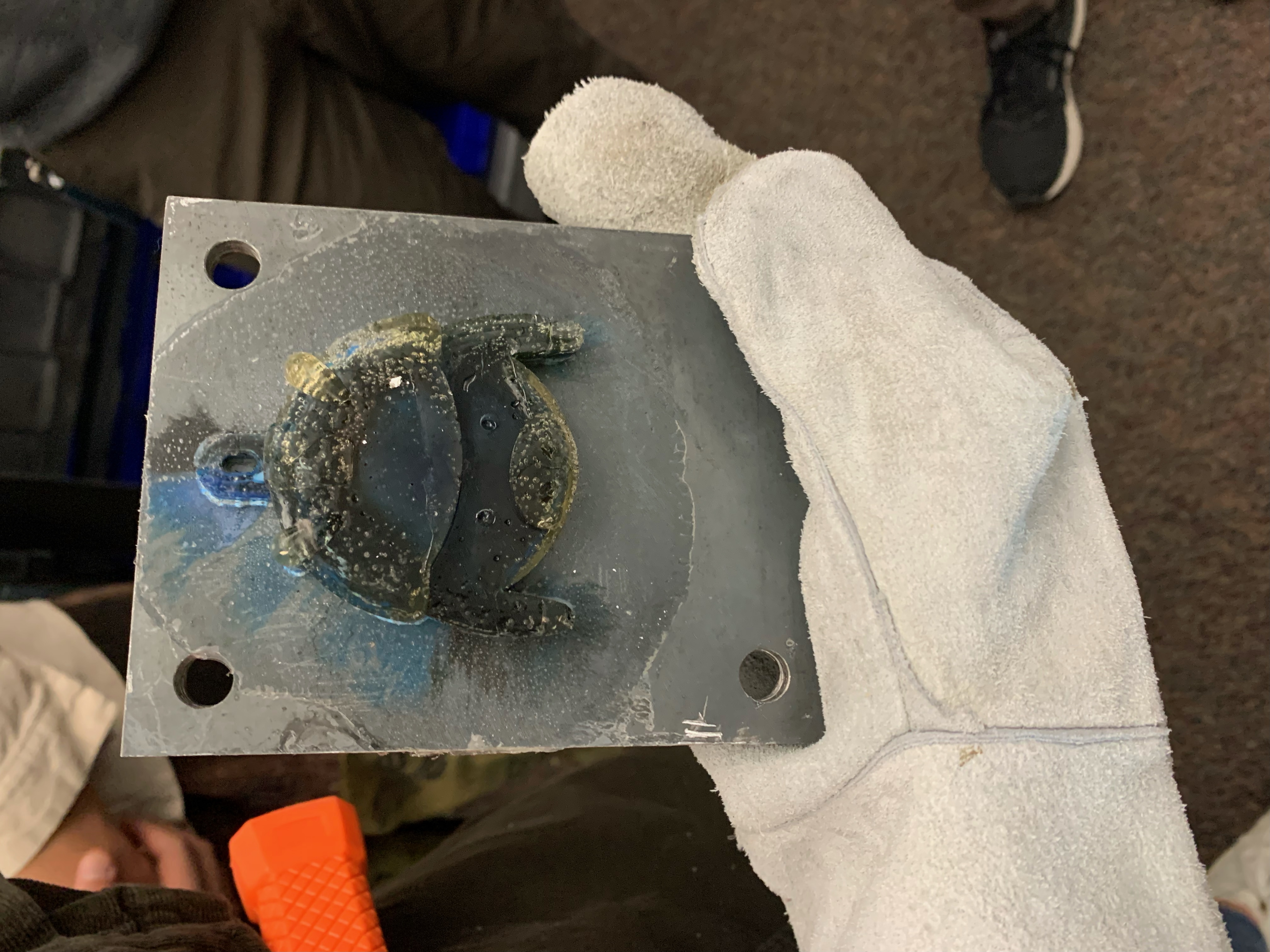

Blaster Keychain Injection Mold
Designed an aluminum injection mold in SolidWorks for a Blaster keychain inspired by the Colorado School of Mines mascot. The mold was CNC machined and used to produce keychains.
Design
Loading 3D model...
SolidWorks
Interactive 3D model - Click and drag to rotate, scroll to zoom
Final Product
Print Details
1/15/2025
Jewelry Tree

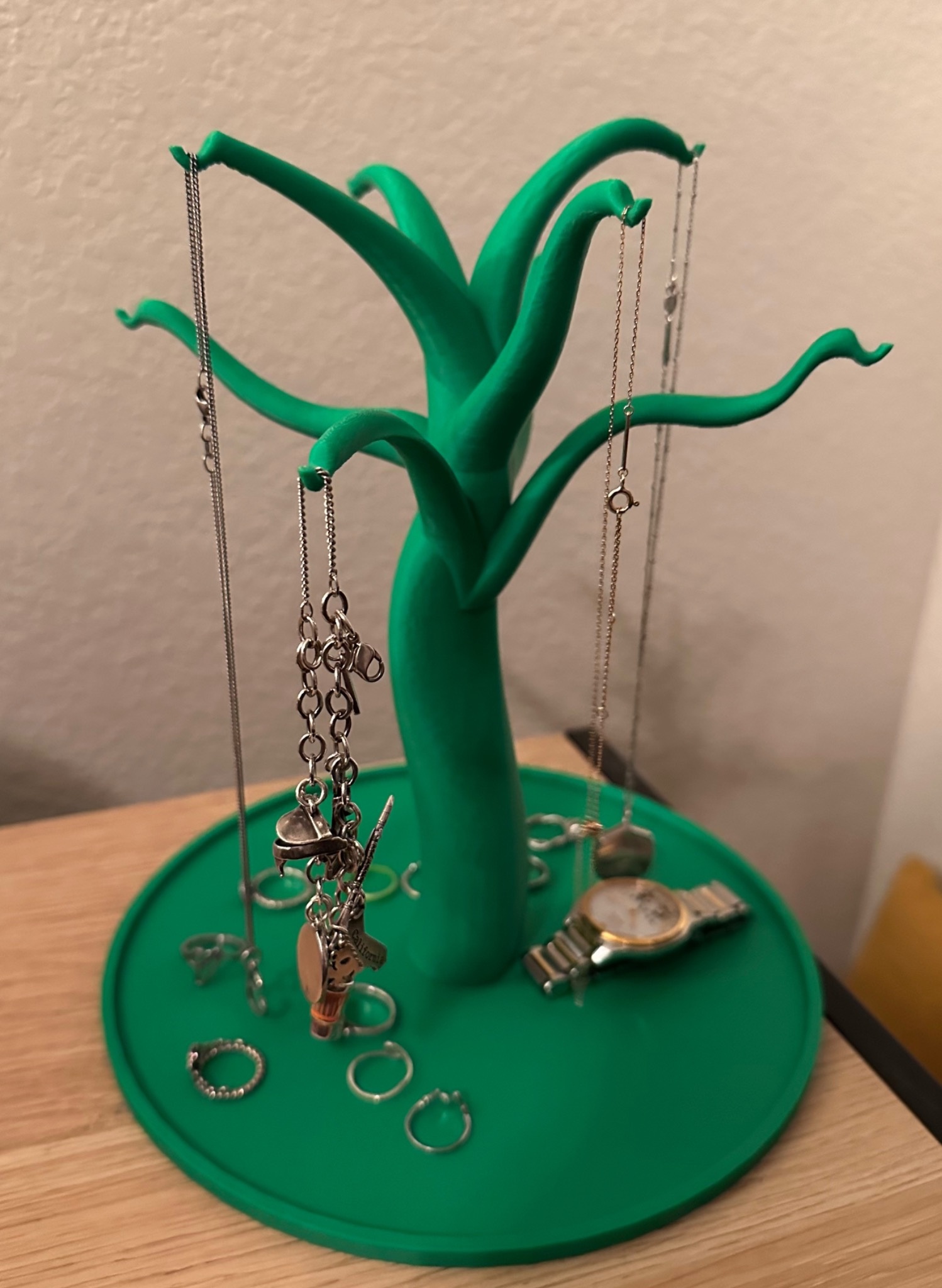

Designed a jewelry tree to hold and organize accessories.
Design
Loading 3D model...
SolidWorks
Interactive 3D model - Click and drag to rotate, scroll to zoom
Final Product
Print Details
1/15/2025
Elephant Bracket

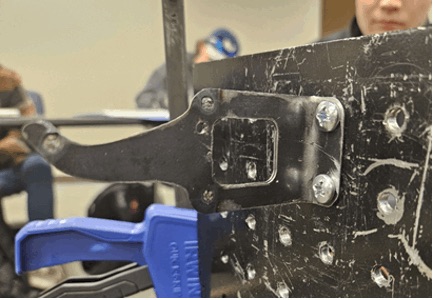

Designed a decorative, elephant-inspired bracket in SolidWorks and validated its wall-mounted performance with a 35‑lb load test in class.
Design
Loading 3D model...
SolidWorks
Interactive 3D model - Click and drag to rotate, scroll to zoom
Final Product

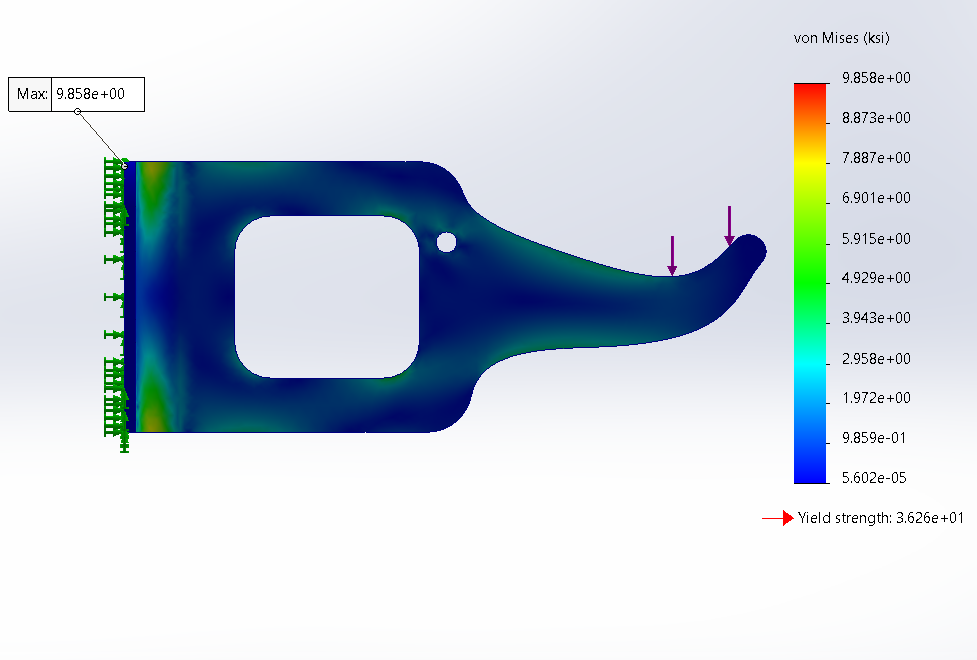

Von Mises Stress

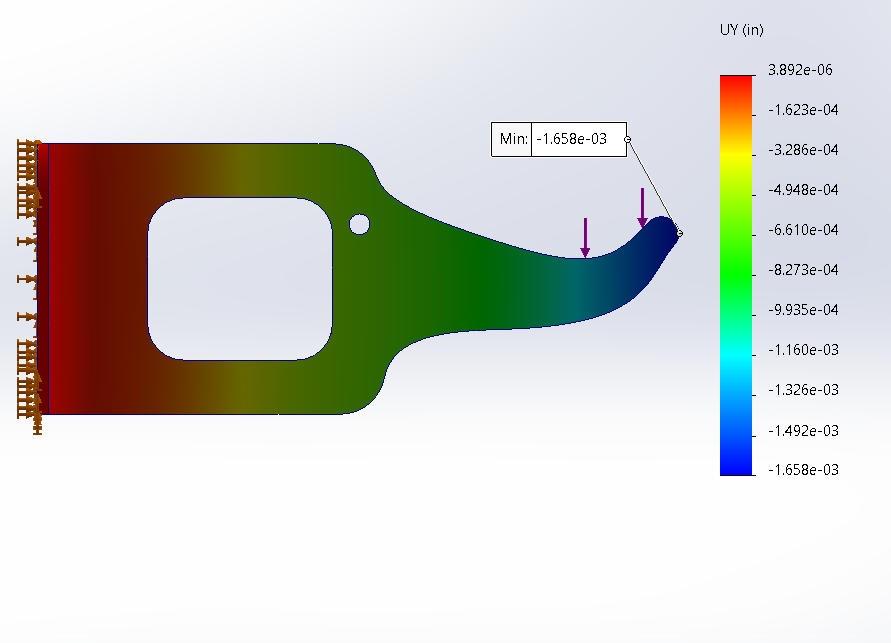

Vertical Displacement
Print Details
4/21/2025
Wall Bracket
Designed a clean, sturdy wall bracket in SolidWorks for mounting and support.
Design
Loading 3D model...
SolidWorks
Interactive 3D model - Click and drag to rotate, scroll to zoom
Print Details
4/10/2025
Custom Nightstand Shelf

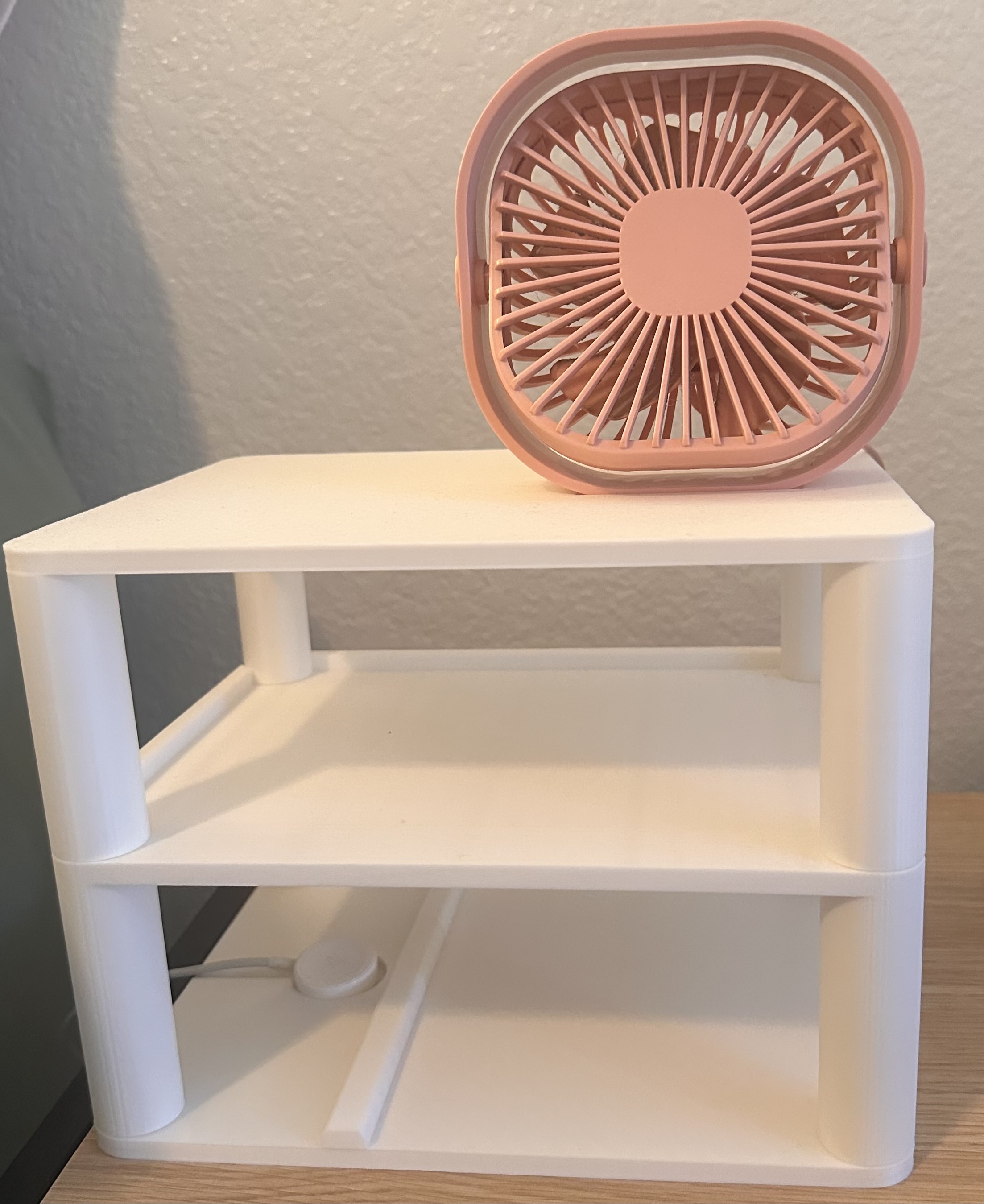

Designed a custom nightstand shelf with form-fitting slots for a compact fan and watch chargers, keeping essentials organized and within reach.
Design
Loading 3D model...
SolidWorks
Interactive 3D model - Click and drag to rotate, scroll to zoom
Final Product
Print Details
PLA
1/10/2026
Decorative Planter
Geometric planter with drainage system for small succulents. Modern design with clean lines and integrated water tray.
Design
Loading 3D model...
SolidWorks
Interactive 3D model - Click and drag to rotate, scroll to zoom
Final Product
Print Details
PETG
2/4/2025
